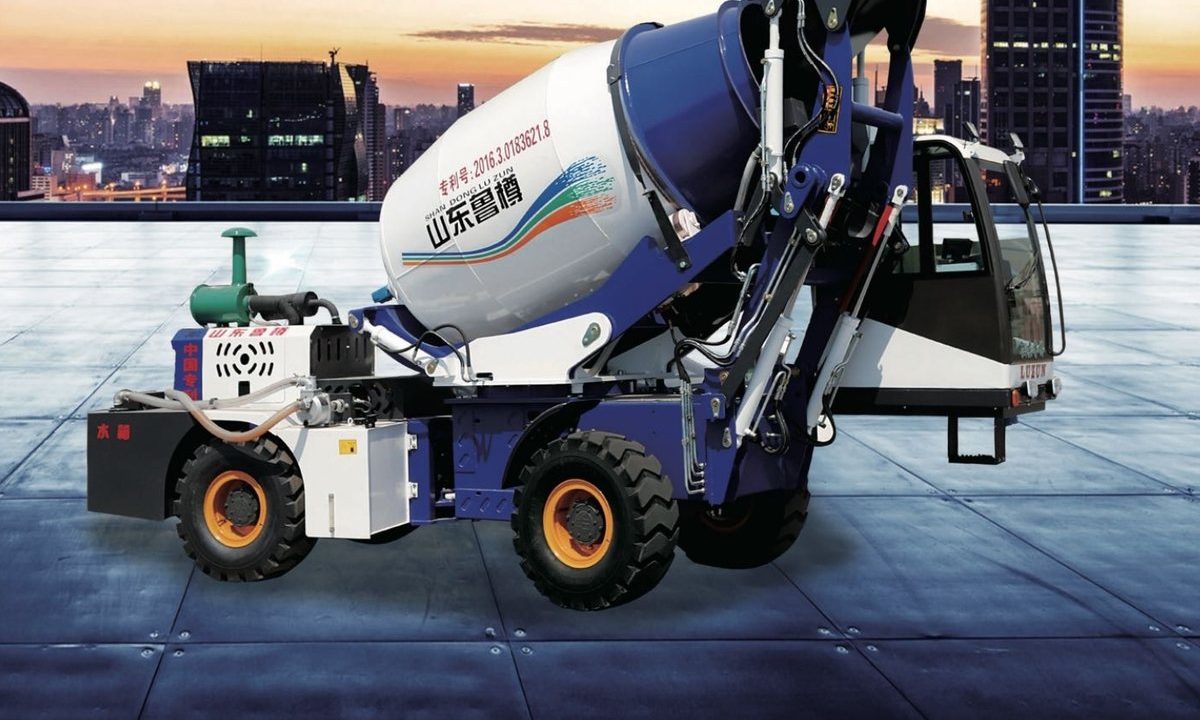

JBC3200 Self-Loading Concrete Mixer (1.8 m³)
image29image1-1image13-1

JBC3200 Self-Loading Concrete Mixer (1.8 m³)

  • Model: JBC3200
  • Capacity: 1.8 m³
  • Technical Specifications: Articulated · New design

New-design 1.8 m³ articulated mixer with a dedicated cement hopper and oversized slewing ring for safer, faster work.

The new-design JBC3200 keeps a short, compact body that suits small rural projects and tight sites, yet adds professional-grade upgrades:

  • Dedicated cement hopper — add cement without waiting, speeding up the pour.
  • Oversized slewing ring — about 20 cm larger than peers, improving upper-body stability and safety.
  • Hydraulic self-locking — prevents accidental movement on heavy loads or slopes.
  • HD driving/reversing camera with blind-spot monitoring, multifunction dashboard, electronic water control and a shock-absorbing seat in a spacious cab.

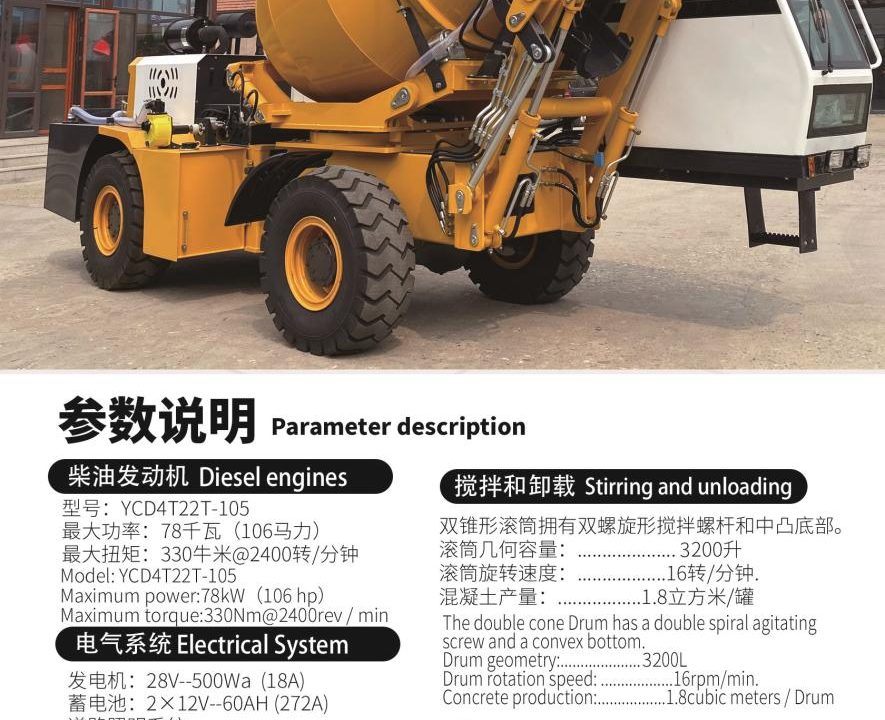

Technical Specifications

Discharge Capacity 1800 L
Drum Geometrical Capacity 2680 L
Engine Model Yuchai 4102
Rated Power 78 kW
Gearbox Model ZL-265
Gear 4 forward / 4 reverse
Fuel Tank 63 L
Water Tank 400 L
Overall Dimensions (L×W×H) 7300×2600×2750 mm
Wheelbase (mm) 2615
Curb Weight (kg) 5666
Drum Rotation 270°
Drum Mixing Speed (r/min) 13
Max. Speed (km/h) 30
Maximum Grade 30°
Min. Turning Radius (mm) 5270
Min. Ground Clearance (mm) 280
