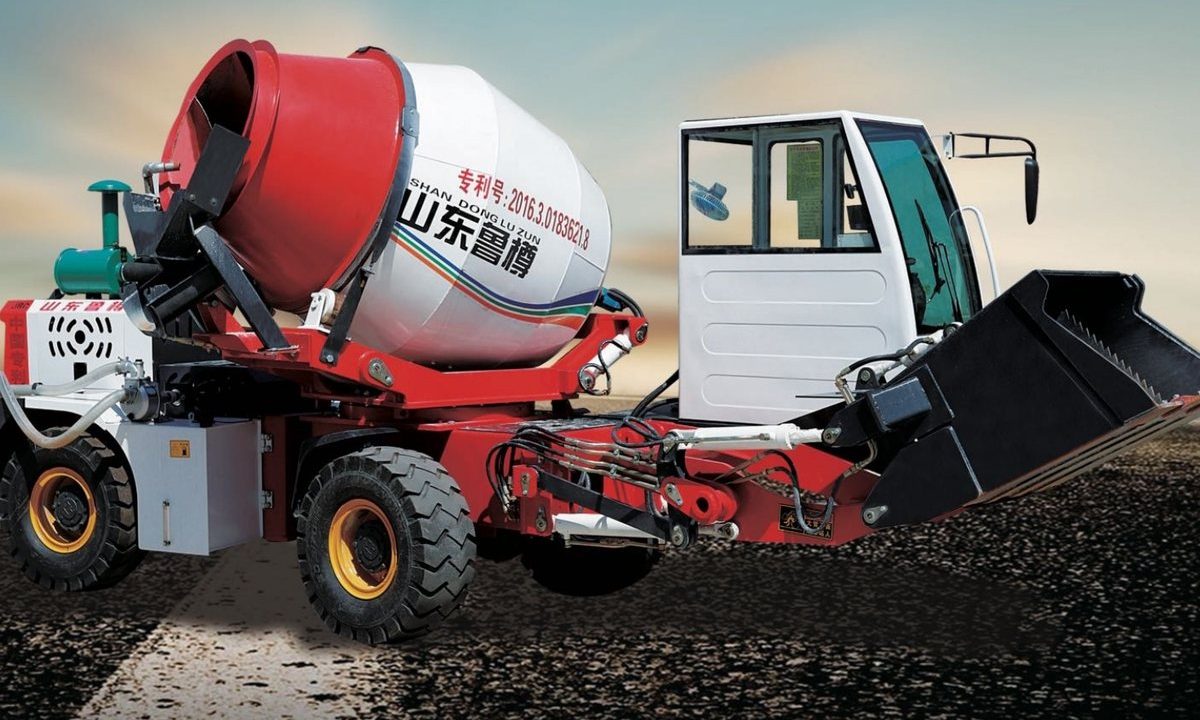

JBC1200 Self-Loading Concrete Mixer (1.2 m³)
image1image2image13

JBC1200 Self-Loading Concrete Mixer (1.2 m³)

  • Model: JBC1200
  • Capacity: 1.2 m³
  • Technical Specifications: Articulated · 4×4

Our most compact self-loading mixer — ideal for narrow rural roads and tight construction spaces.

Request a Quote

The JBC1200 is the smallest member of the LUZUN range. Its short wheelbase and 4×4 drive make it exceptionally agile on mountain tracks and inside confined sites, while the 270° rotating drum discharges in any direction.

  • Replaces 4–6 manual workers
  • One batch in ~12 minutes
  • Patented double-spiral mixing screws

Technical Specifications

Discharge Capacity 1200 L
Drum Geometrical Capacity 1700 L
Engine Model Quanchai 4B2-75m22
Rated Power 55 kW
Gearbox Model ZL-265
Gear 4 forward / 4 reverse
Fuel Tank 63 L
Water Tank 400 L
Overall Dimensions (L×W×H) 6400×2550×2450 mm
Wheelbase (mm) 2400
Curb Weight (kg) 4185
Drum Rotation 270°
Drum Mixing Speed (r/min) 13
Max. Speed (km/h) 30
Maximum Grade 30°
Min. Turning Radius (mm) 4700
Min. Ground Clearance (mm) 280
