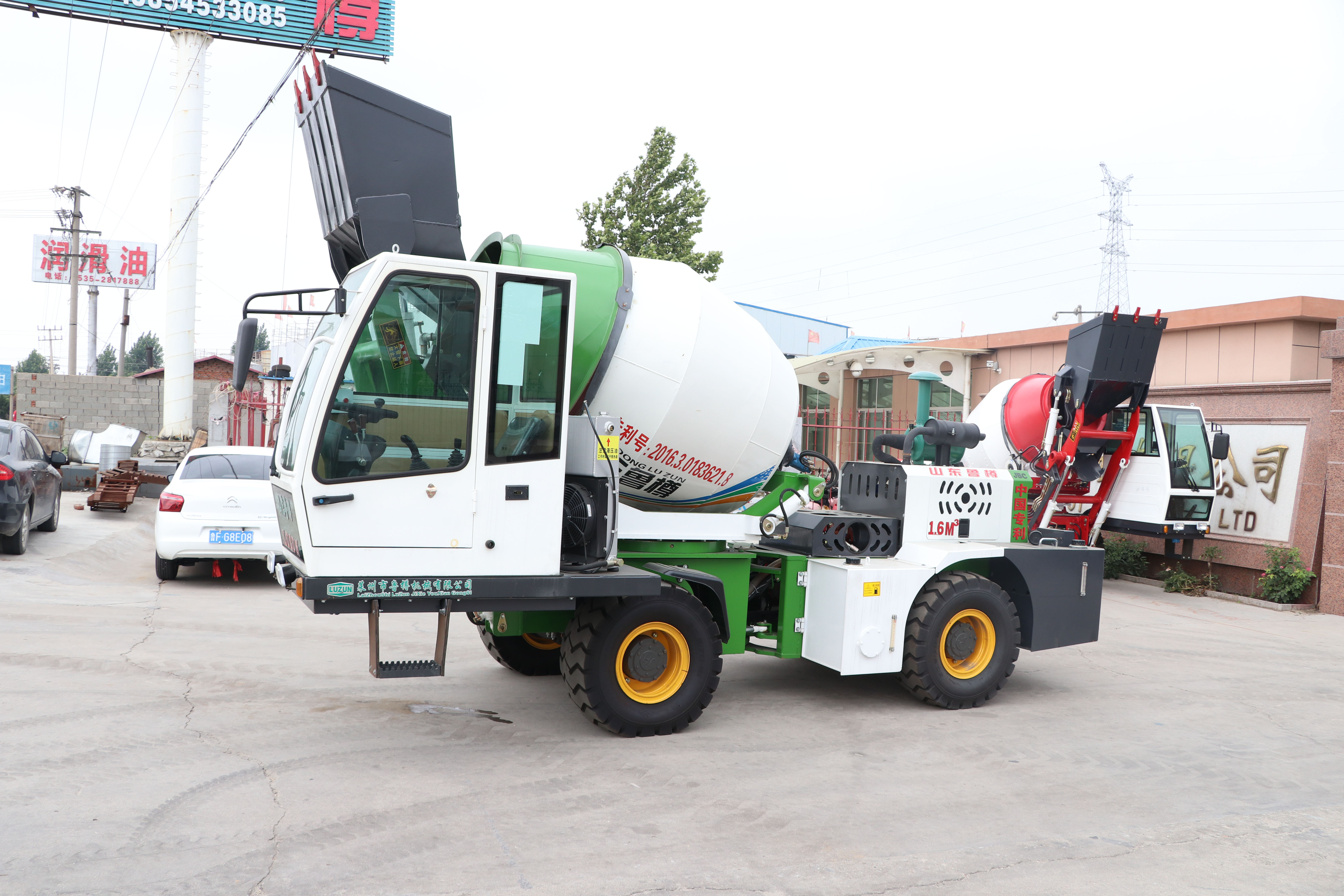

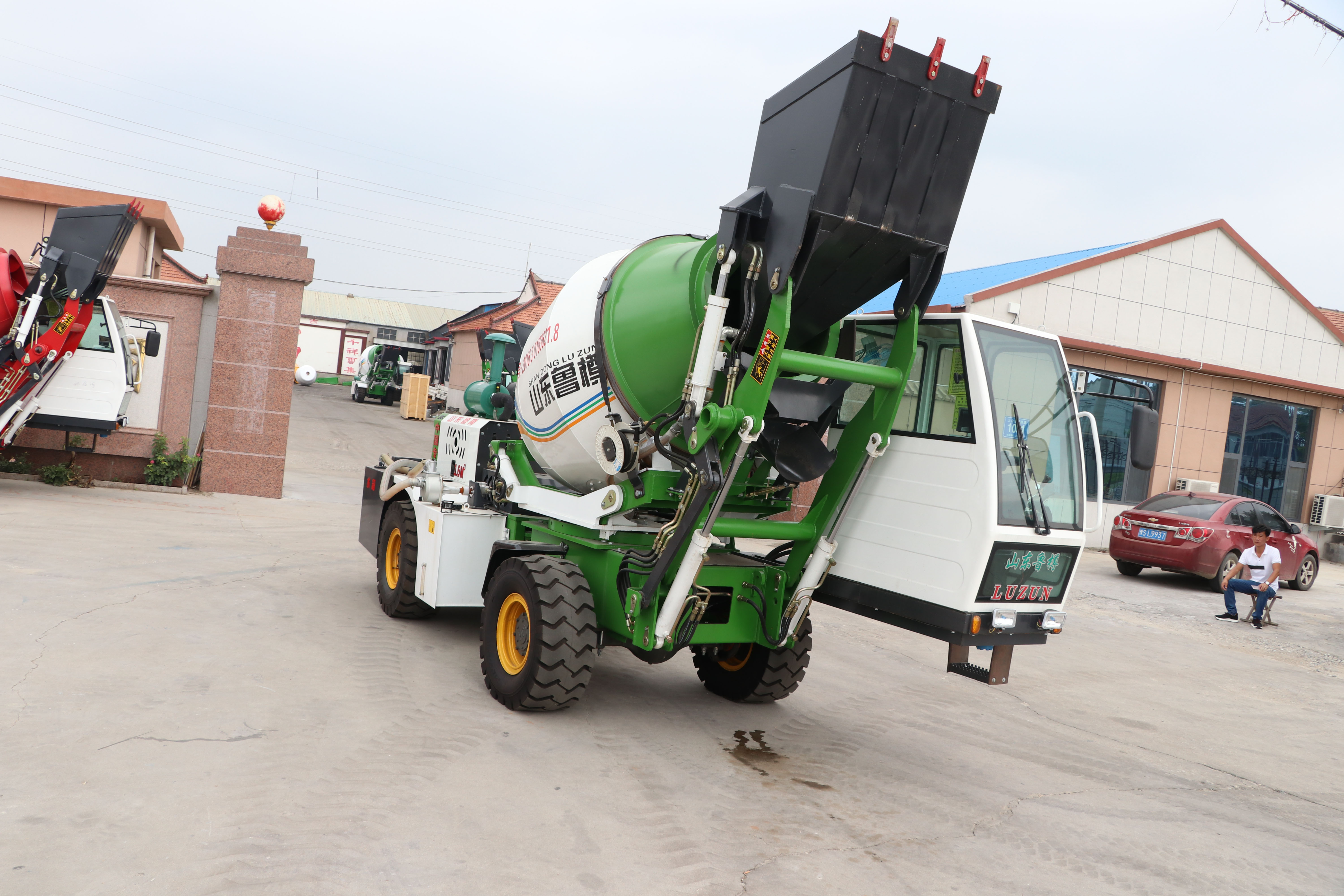

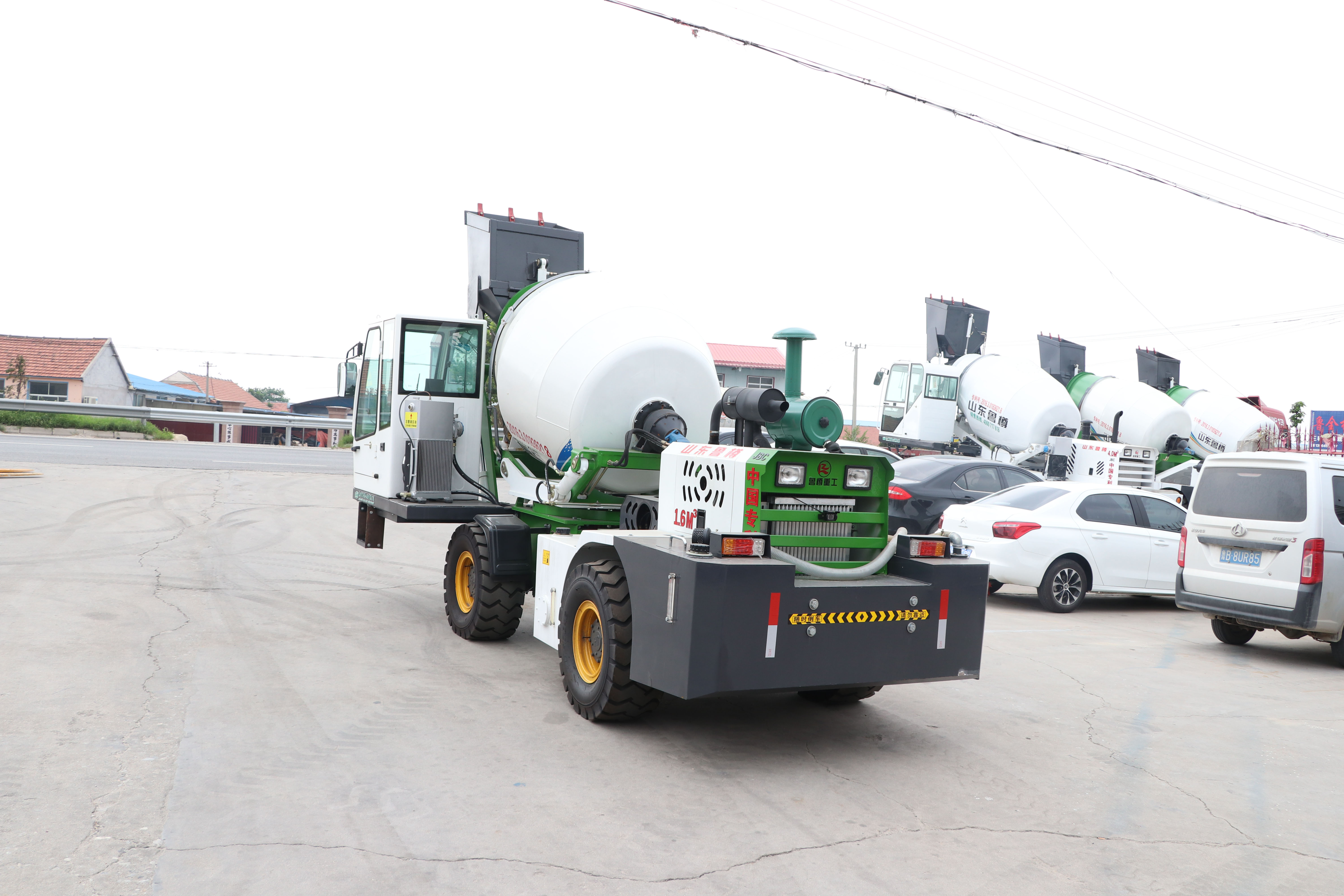

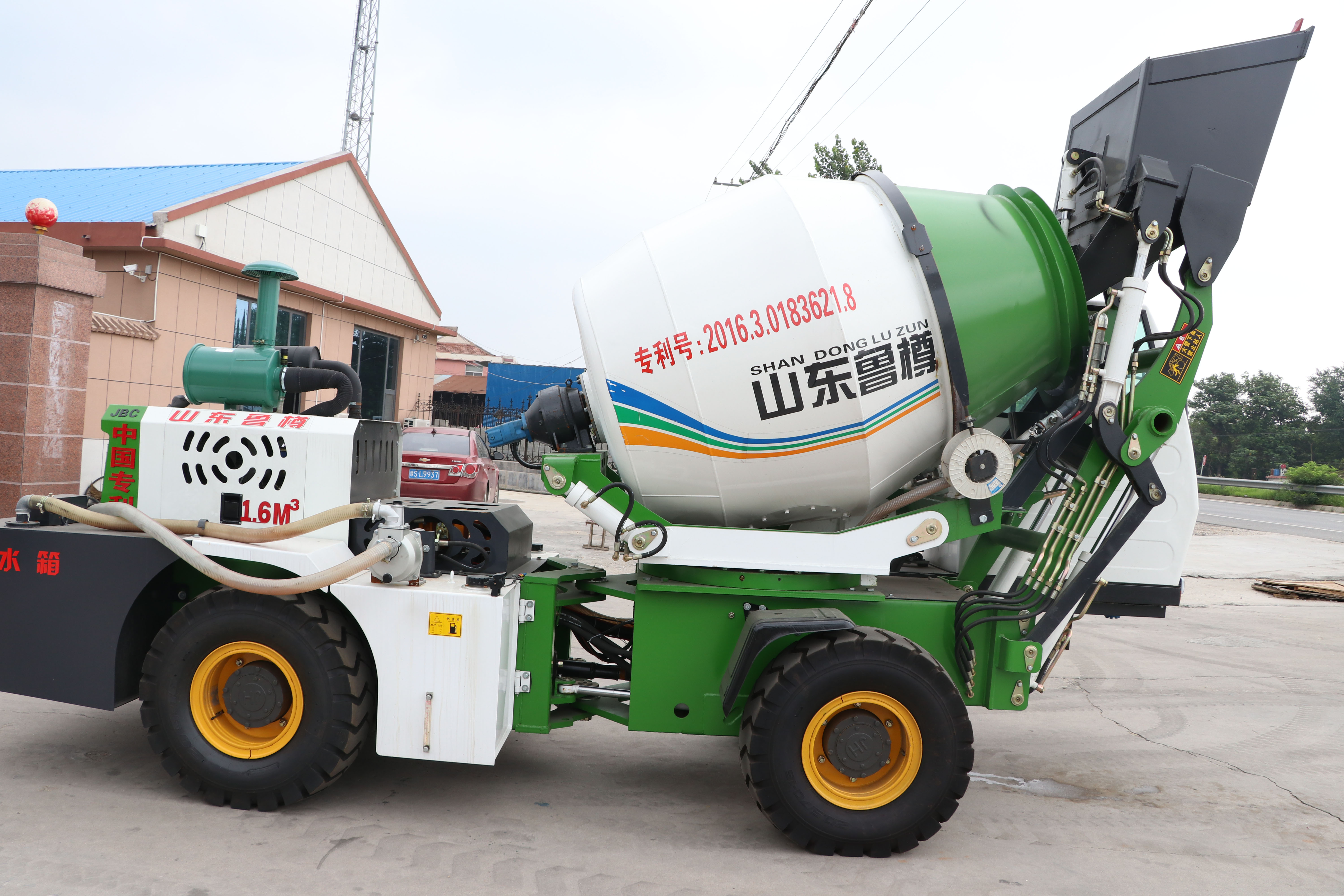

JBC1.6R Self Loading Concrete Mixer Truck for Sale
Visit:279 CategoryProduct
- Self propelled concrete mixing system with Italian technology
- Easy operating control
- High efficiency, low cost
- Perfect combination of mixers and loaders
- Two directions discharge angle
- One year warranty
| MODEL | JBC1.6/1.6R |
|---|---|
| ENGINE | |
| Model | YN27GBZ |
| Type | diesel, 2.7L, 4-cylinder inline, turbo charged and water cooled, dry air filter |
| Injection | direct with michanical control |
| Rated power | 55KW (75HP) |
| Max torque: | 237N.M @2000 rpm |
| Emission standard | Euro II |
| CHASSIS | |
| Structure | Articulated steering |
| Transmission gear | Automatic, 4F+ 4R shift |
| Steering wheels | 2 steering wheels, assisted by double displacement load induction power steering system |
| Driving wheels | 4×4 Rear axle is oscillating (±28°) with planetary reduction gears |
| Brakes | Internal hub service & emergency brakes acting on 4 wheels, activation with mini servo pump on independent dual circuit. negative pressure parking brake, with internal wheel hub discs on the front axle. |
| Tyres | Off road steel cord type, 20.5-16-12PR, Max load 2540kg (450kpa) |
| LOADING | |
| Hopper Volume | 270L |
| Number of shovel loading times of full drum | Around 6 times |
| Weighing system | The lifting arm is equiped with high accuracy automatic weighting unit. |
| MIXING & UNLOADING | |
| Mixing volume | 1.6M3 |
| Geometrical volume | 2.9M3 |
| Concrete output | 1.6M3 / batch, 6.4-8M3 / hour |
| Drum rotating speed | 15 rpm |
| Drum slewing angle | 270° The reaction frame mounted on the heavy-duty ball saddle can be rotated 180 degrees hydraulically and automatically locked by hydraulic brakes. |
| Chute | Removable chute ensures direct unloading through the hopper. 2pcs of chute extensions are supplied with the truck. The chute can be rotated at 180 degrees through a mannually adjustable handle. |
| ELECTRIC SYSTEM | |
| Alternator | 28V-500W (18A) |
| Battery: | 2x12V-60AH (272A) |
| Lighting system | front road lights, rear working lights |
| WATER SYSTEM | |
| Max. water suction capacity | 90 L/min. (Self-priming hydraulic water pump) |
| Water tank capacity | 2x230L |
| Water pump | 24V self-priming volumetric pump can be operated on the driver’s seat, a high pressure pump is equipped to wash the truck |
| HYDRAULIC SYSTEM | |
| Gear pump | Brand: PERMCO |
| Max flow | 20/50L/min |
| Max pressure | 16MPa |
| Joystick control | 3-handle multifuntional joystick |
| Heat exchanger | aluminium |
| Oil intake | open, filter changed from outside |
| VEHICLE | |
| Speed | forward: 0-7km/h, 7-20km/h backward: 0-7km/h, 7-20km/h |
| Gradient | Fully loaded 40% |
| Overall size (L×W×H) | 6030mm × 2240mm × 2750mm (3400mm full height) |
| WEIGHT | |
| Operating weight | 5,500Kg |
| Loading capacity | 3,840Kg |
| Max. gross weight | 9,340Kg |
| SERVICE REFILL CAPACITIES | |
| Fuel tank: | 100L |
| Total hydraulic system capacity | 100L |
| Engine oil | 16L |
| CABIN | |
| Type | Closed cab, tilting front window, user-friendly seats with flexible suspension and adjustable heights |
| Air conditioning system | Cooling & heating air conditioner |
